DOFOCH OE-Matched Drivetrain and Engine Parts

Review volume and difficulty both vary. Mount kits are straightforward jobs with hundreds of reviews behind them and scores near 4.4. Transfer cases and PTUs are heavier, harder installs with fewer reviews, and a single failure moves a small sample hard. The 4.2-star average sits on top of a 2.5 to 5.0 spread, which is published rather than smoothed.

Return eligibility narrows sharply once a part has been fitted or the old unit is out. Retailer return windows run on their own clock, separate from the warranty term. Check both before teardown begins: the return window on your order and the warranty wording on the part page. That check costs five minutes and is the single most useful one on this list.

Sales run through online part pages rather than a brand storefront or a local counter. Pricing moves, so check the current figure on the page for the exact part you need. Confirm the OE number and the warranty wording on that same page before ordering, since both are stated per part rather than across the whole range.

An open differential lets each rear wheel turn at its own speed, which sends torque to whichever wheel lost grip first, so a loaded trailer on a wet ramp leaves you spinning one tire. A limited-slip splits that torque through clutch or gear packs, and the truck climbs the ramp because the wheel with bite still gets drive. A locker ties both wheels to one speed for maximum off-road traction, and you pay for it with a clunk in tight parking-lot turns and some tire scrub on dry pavement. For a daily driver that tows or sees snow, the limited-slip carrier is the one most owners fit. Count your splines first: 30 for a Chevy or GMC 10-bolt, 31 for a Ford 8.8 housing.

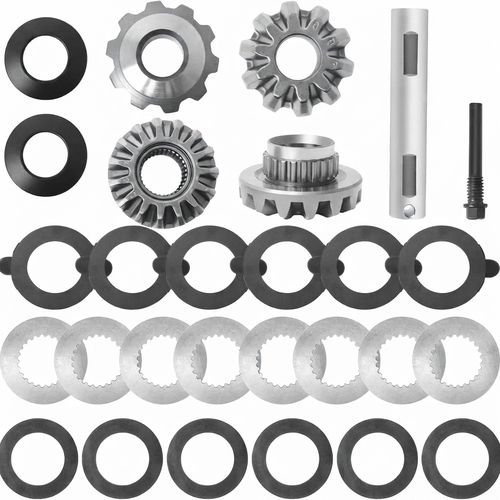

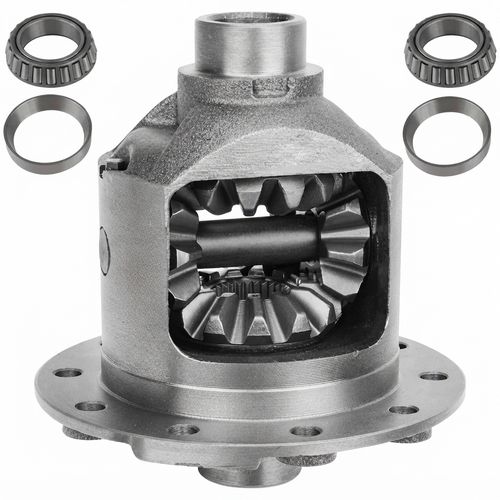

Count the splines on the axle shaft before ordering. A Chevy or GMC 8.5-inch 10-bolt housing takes a 30-spline unit. A Ford 8.8-inch housing from 1986 through 2013 takes 31 splines. The counts are not interchangeable: a 31-spline carrier will not seat on a 30-spline shaft, and forcing the fit ruins both parts.

Ratios from 2.73 through 5.13 and up are covered, which spans stock highway gearing through a re-geared axle running larger tires. Check the ratio stamped on your carrier tag first. If the tag is missing or rusted off, count the ring gear and pinion teeth and divide to get your figure before you order.

Matching bearings ship inside the differential locker kit, which removes a separate parts-counter trip mid-job. One Silverado owner found the supplied bearings cut for newer trucks than his older model, so measure your cups and cones against the kit spec before the axle comes apart. The seller sorted that case out, but catching it early beats catching it late.

Grinding or whining that changes with speed, trouble shifting between two-wheel and four-wheel drive, and fluid pooling under the unit are the three classic signs. On an all-wheel-drive crossover the first symptom is usually a wet patch where the PTU meets the transaxle, since the unit sits in a hot location and cooks its seals.

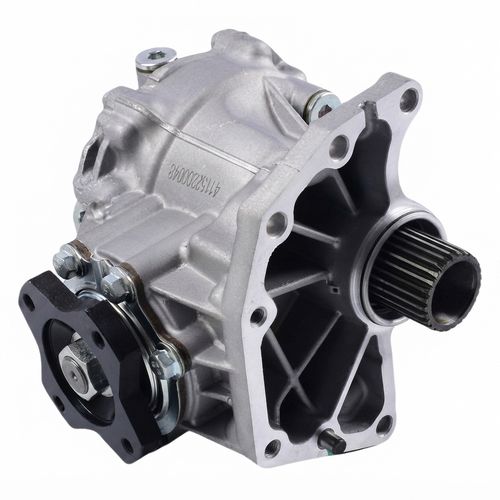

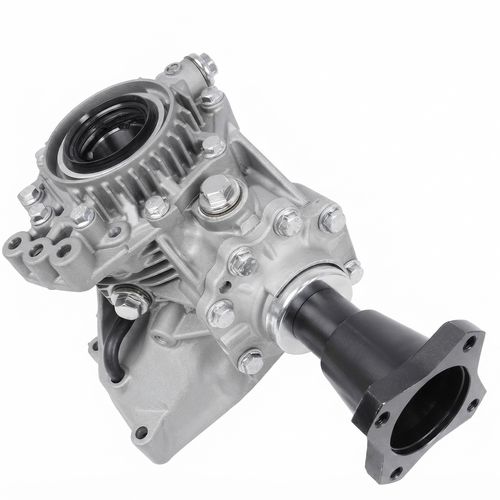

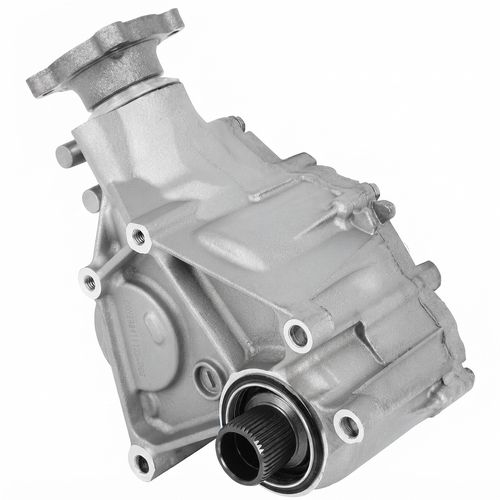

A power take-off unit splits engine torque from the transaxle out to the rear driveshaft, which is what makes an all-wheel-drive crossover pull from all four wheels. It runs a small fluid capacity in a hot spot behind the engine, so a slow leak becomes a seized unit faster than most drivers expect. Replacement restores drive without a donor-car gamble.

Loss of power under load, a whine that rises with boost, blue or grey smoke on acceleration, and oil in the intake tract all point at a failing turbo. On a 3.5L EcoBoost the symptom often mimics a slipping transmission, which sends owners down the wrong repair path. Check boost pressure and the intake for oil before you touch the gearbox.

Oil starvation heads the list. A blocked or unprimed oil feed line kills the journal and thrust bearings in seconds, which is why priming before first crank matters more than any other install step. Foreign object damage through the compressor wheel, extended oil-change intervals, and hot shutdowns without a cool-down finish the list.

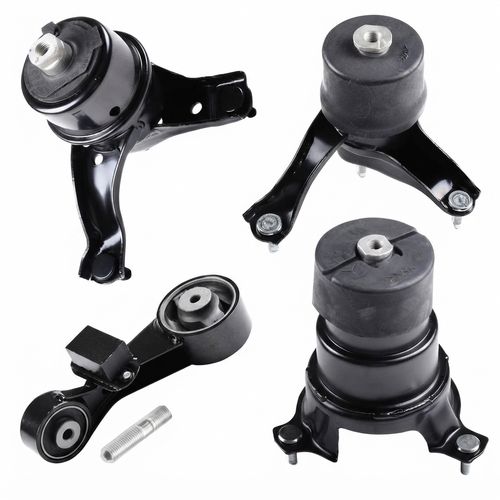

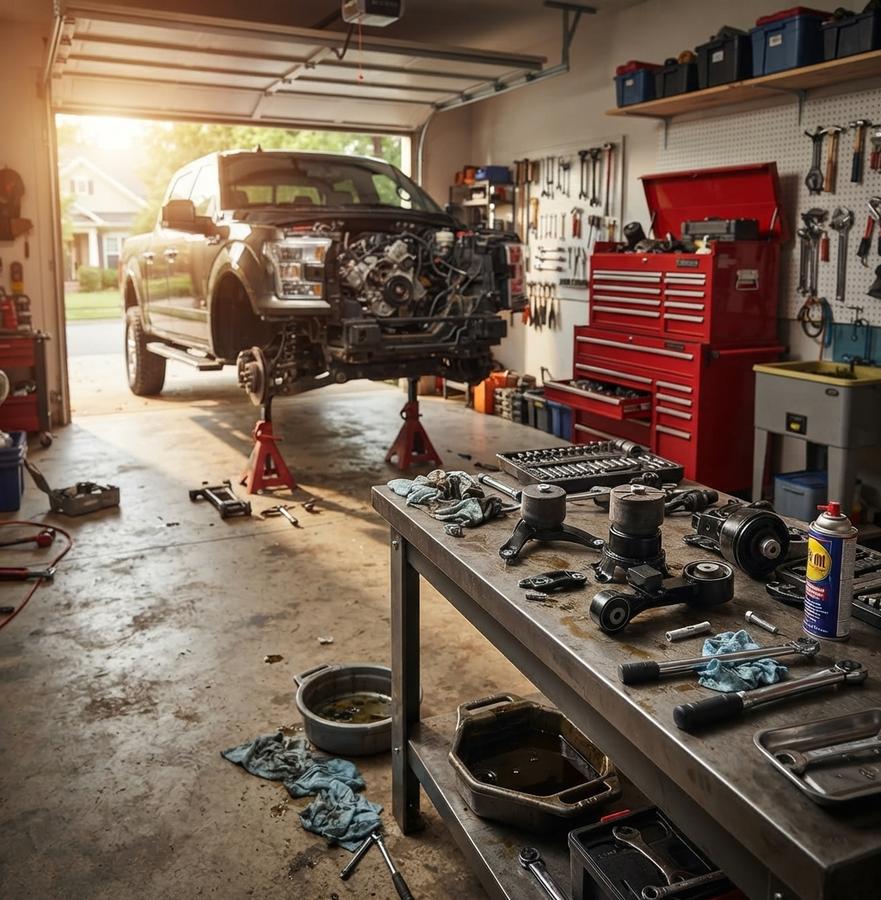

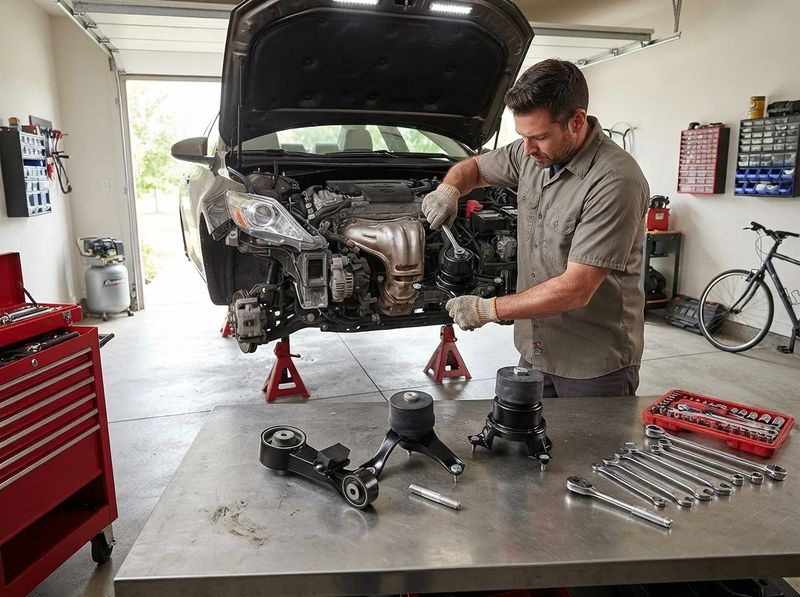

Excess shaking at idle, a clunk when you pull away from a stop or shift under load, and visible cracks or fluid weeping from the mount body. The engine physically moving under throttle is the advanced version. On a Camry the torque strut usually goes first, and it is the position a driver feels most clearly from the seat.

A rubber mount is solid rubber bonded to a steel or iron frame, with no internal chamber. A hydraulic mount holds a fluid-filled chamber for extra damping, and a failed one weeps that fluid visibly. The two are not interchangeable on the same bracket, so match the type your vehicle came with rather than the one that looks sturdier.

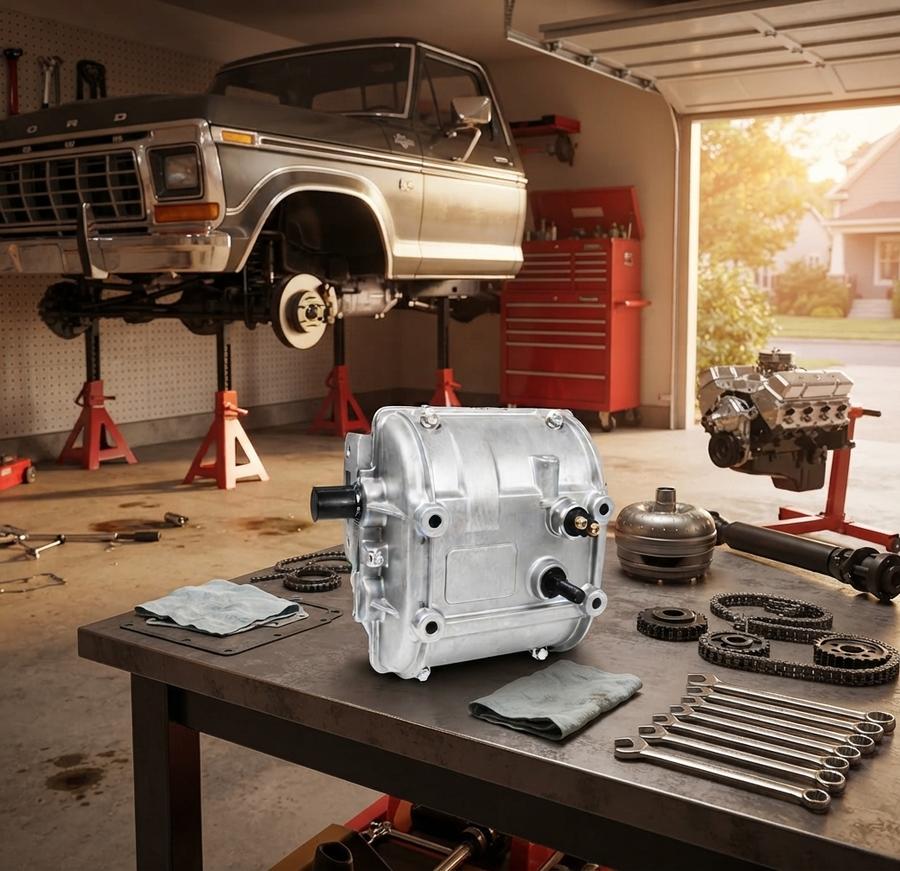

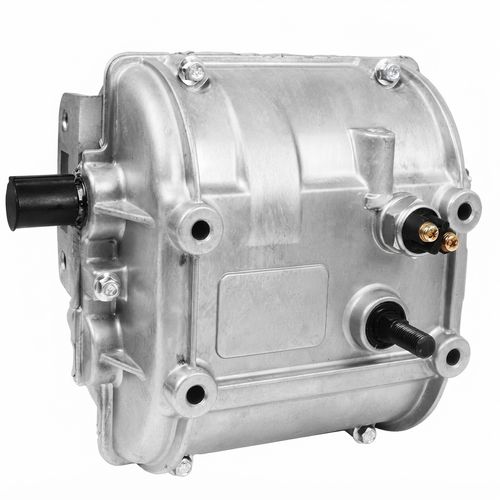

The manufacturer states a 2,000-hour endurance test and an IP67 waterproof and dustproof rating for the 9-spline 5-speed transmission. That claim applies to that transmission alone and is not independently verified, nor does it extend to the differentials, transfer cases, turbochargers, or mount kits. No other part here carries a stated endurance figure.

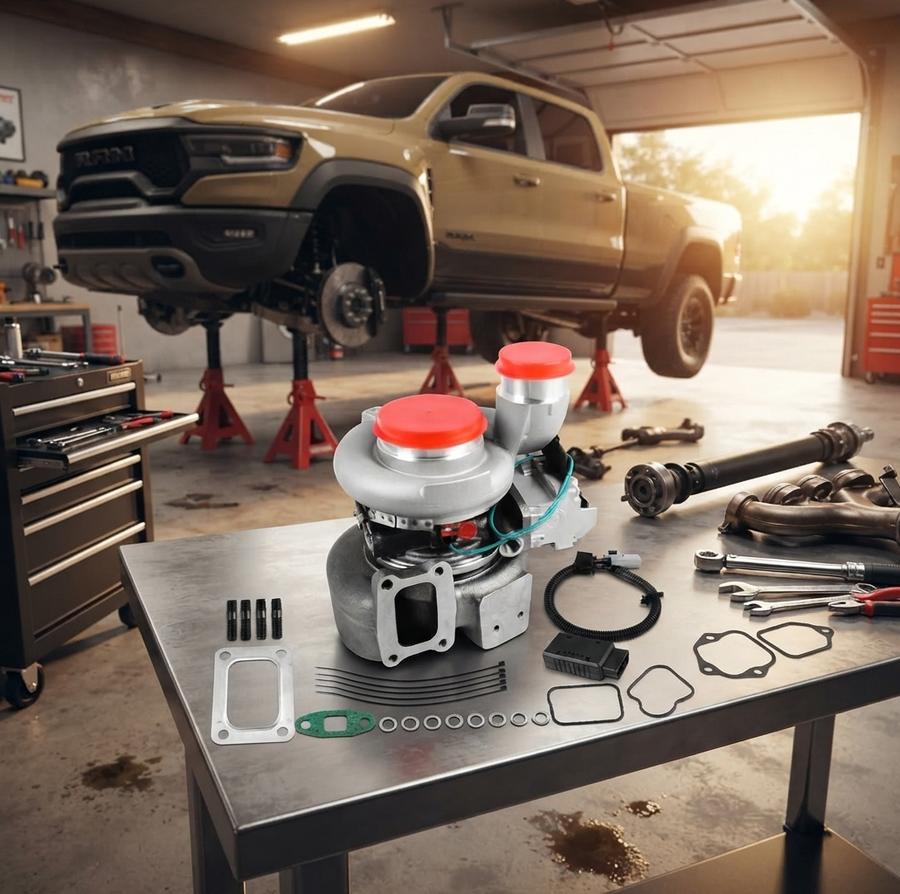

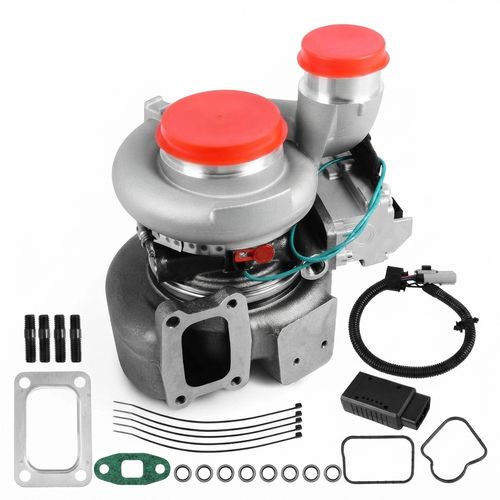

The Cummins turbocharger runs 50.7 pounds and the Ford PTU 49 pounds, both past a comfortable one-person lift. The differential locker is 21.7 lbs and the Accord 3.0L mount kit 9.5.

Difficulty runs on a gradient. Mount kits are the entry point: an afternoon on ramps with hand tools. Transfer cases and PTUs sit in the middle, needing a floor jack, stands, and a second person for a unit near fifty pounds. Differential rebuild and re-gear work is advanced, because shim and preload measurement decides whether the gears survive.

A floor jack and stands, a transmission or transfer case jack, a full socket set, a torque wrench, a drain pan, and RTV silicone sealant for the mating surface. Add a second person before the unit comes down, because the Ford PTU is past a comfortable one-person lift and will land on the axle housing if one hand slips. Some owners fabricate a height-adjustable cradle from all-thread rod so the case lines up with the bolt holes instead of being wrestled into place. Pull the service torque figures for your vehicle before the first fastener moves, and plan on a full day rather than an evening. Drain the old unit into the pan before you break the driveshaft flanges loose, or the fluid finds your sleeve.

Kits ship with the parts rather than the tooling. A differential job may want a bearing puller and a dial indicator for backlash. A transfer case swap wants a transmission jack. A turbo job wants a full metric socket set and often an exhaust manifold stud kit. Check your service procedure and lay the tools out before the first fastener moves.

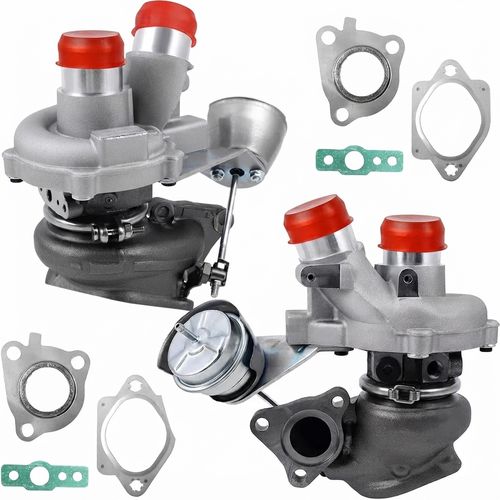

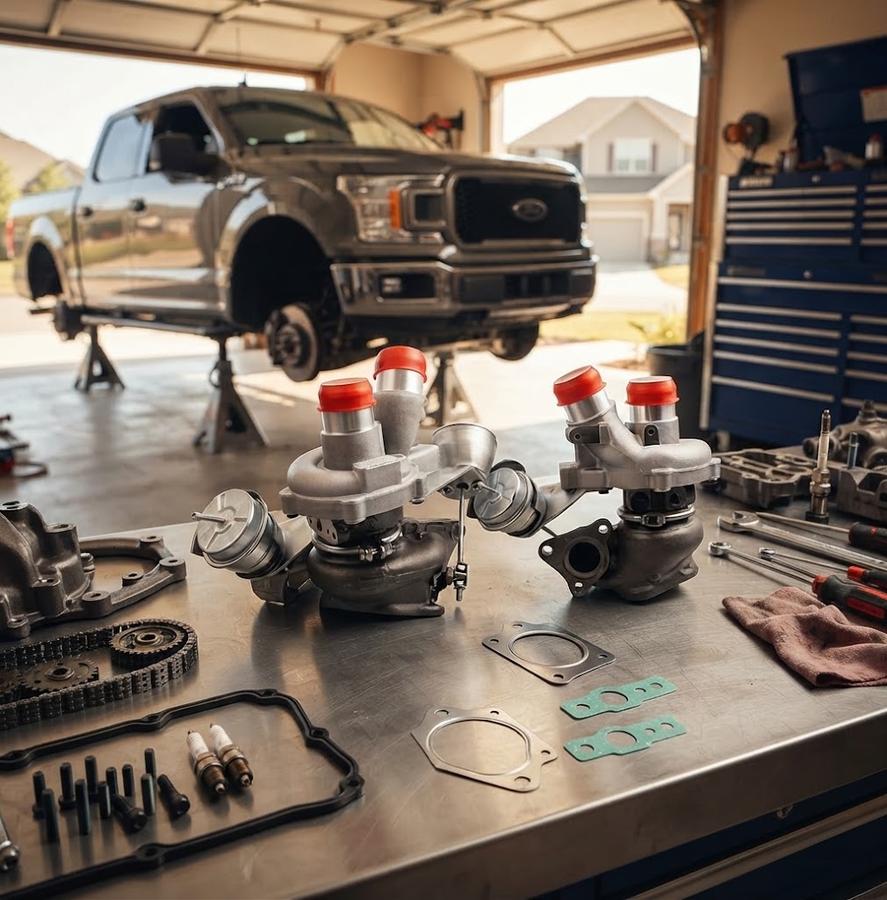

Owners have. One F-150 driver pulled the old twin set, inspected the intakes, and had the truck back together inside a day. The job needs patience with exhaust fasteners and one non-negotiable step: prime the oil feed line before first crank. A dry start-up destroys a new center bearing in seconds, and no warranty covers that damage.

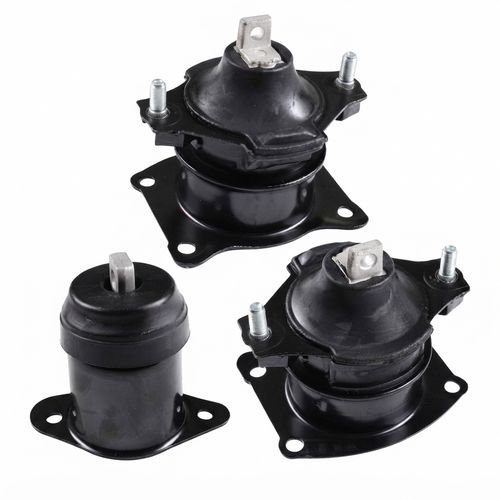

Mount replacement is the most approachable job here. One buyer swapped a friend's Accord set in under an hour with the engine supported from below. Support the engine before removing anything, work one position at a time, and torque to the service figure. Fit the whole set in one session rather than chasing positions across several weekends.

Torque figures decide whether drivetrain hardware stays put. Reviews describing catastrophic failures on aftermarket units point at fasteners more often than castings, including one turbo that came loose before the engine was ever started. Pull the service torque values for your vehicle, use a calibrated wrench, and re-check the mounting hardware after the first full heat cycle.

New gearsets want a gentle first cycle. Run a differential without towing or hard launches for the first few hundred miles, then change the fluid and inspect what comes out. A fine metallic haze is normal on fresh gears; chunks are not. Turbos need a cool-down after hard running rather than an immediate shutdown, especially on a diesel.

A turbocharger fitted to the factory configuration keeps the emissions layout intact. Differentials, transfer cases, and mounts sit outside emissions testing entirely. Requirements vary by state.

A rear locker delivers most of the traction gain for street and light off-road use, and it stays predictable in daily driving. Front lockers add capability on serious trails but affect steering feel when engaged. Start with the rear axle, run it a season, and add the front only if the terrain keeps stopping you.

Garrett and Holset are original-equipment suppliers with decades of validation data behind them, and their units carry that record in what they cost and how long they last. These are aftermarket replacements cross-referenced to the same OE numbers, with cast iron or aluminum-and-iron housings and gaskets packed in the box for fresh oil-feed and exhaust seals. Owner reports run mixed rather than uniform, which the published per-part rating spread shows rather than hides. If your truck is a work vehicle you cannot afford to strand, the original-equipment unit is the safer buy. If you are keeping an out-of-warranty EcoBoost or Cummins on the road, prime the oil feed, torque to the service figure, and re-check after the first heat cycle.

If the unit ran dry and started making noise, internal damage has usually reached the gears, and a seal kit will not save it. Full replacement is the honest call there, because a rebuild on a chewed gearset buys you a few thousand miles at best. A rebuild earns its keep when the case itself is sound, only the bearings and seals are worn, and you own the tooling to set preload properly instead of guessing at it. Price the specialty tools into that decision before you commit, since a shop press and a dial indicator turn a cheap rebuild into an expensive one. Either way, drop the fluid first and look at what lands in the pan, because chunks decide the question for you.

The Dana 60 carries a larger ring gear diameter and handles more torque in stock form, which is why it lands under heavy trucks. A built Ford 9-inch matches it in many setups thanks to its dropout design and pinion support, and it is easier to service. Neither relates to the Chevy 10-bolt and Ford 8.8 housings covered here.

An automatic locker engages under wheel spin with no driver input, but it clunks in tight turns and changes how the vehicle behaves on wet pavement. A selectable locker gives on-demand control and stays fully open the rest of the time, at the cost of air lines or wiring that add failure points. Daily drivers usually prefer limited-slip behaviour.

Cost gap is the deciding factor for most owners, and several describe a full aftermarket set costing what one factory mount does. Reviews split on feel: some report the shake gone completely, others find replacement mounts stiffer or lighter than the originals they pulled out. On a high-mileage car past its resale peak, the trade usually favours the set.

Find the casting or tag number on your existing unit first. On a differential it usually sits on a cover bolt tag or stamped into the carrier. On a transfer case it is cast into the housing. Match that string against the OE list on the part page, which carries 3 to 10-plus numbers. A dealer or technician can confirm it too.

That scenario is why the bench check matters. Set the new part beside the old one and compare casting numbers, spline counts, and mounting geometry before anything comes off the vehicle. If a defect surfaces after teardown, contact the seller immediately with photographs and the order record, and expect the retailer return window to be tighter than the warranty term.

A manufacturer cannot void an entire vehicle warranty over an aftermarket part in the United States. They can decline a claim on the specific system the part affected, if they show it caused the failure. On a vehicle still under factory coverage, weigh that risk against the cost gap, and keep your installation records either way.

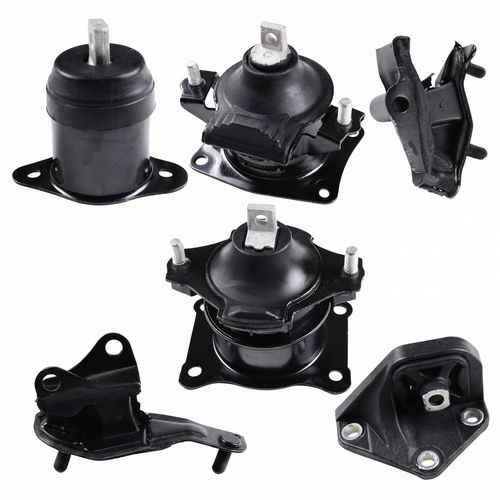

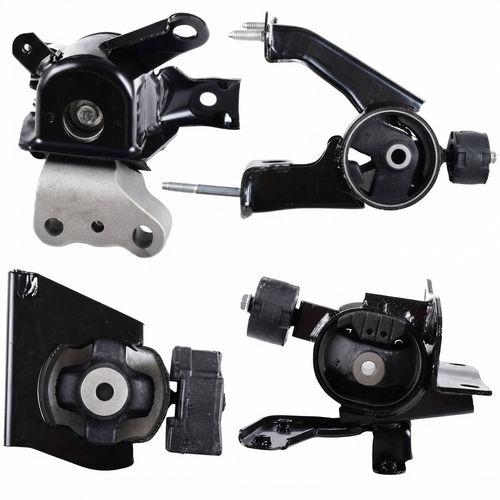

One fresh mount beside three tired ones carries a load it was never sized for, and it usually fails again within months. Owners who replaced only the torque strut describe exactly that outcome. Fit the whole matched set in one session so load distributes across every position, which is also why these mounts ship as three, four, and six-piece kits.

Most maintenance schedules put it between 30,000 and 60,000 miles under normal use. Owners who tow, wade water, or run trails cut that to 12,000 or 15,000 miles. On a fresh install, drop the fluid after the break-in miles regardless of the schedule and inspect what lands in the pan while the coverage window is still open.
